Modular Wall Systems for Controlled Environments

Cleanroom Partitions

PHOENIXX Cleanroom Partitions provide modular, flexible wall systems for constructing controlled environments. Designed for easy installation, future expansion, and compliance with GMP standards. Our partitions are used in over 200 pharmaceutical facilities across India, meeting WHO GMP and US FDA requirements.

500+
Projects Delivered
12+
Years Experience
98%
Client Satisfaction
Pan India
Delivery Network
Request Quote →📞 Call Now

Product Gallery

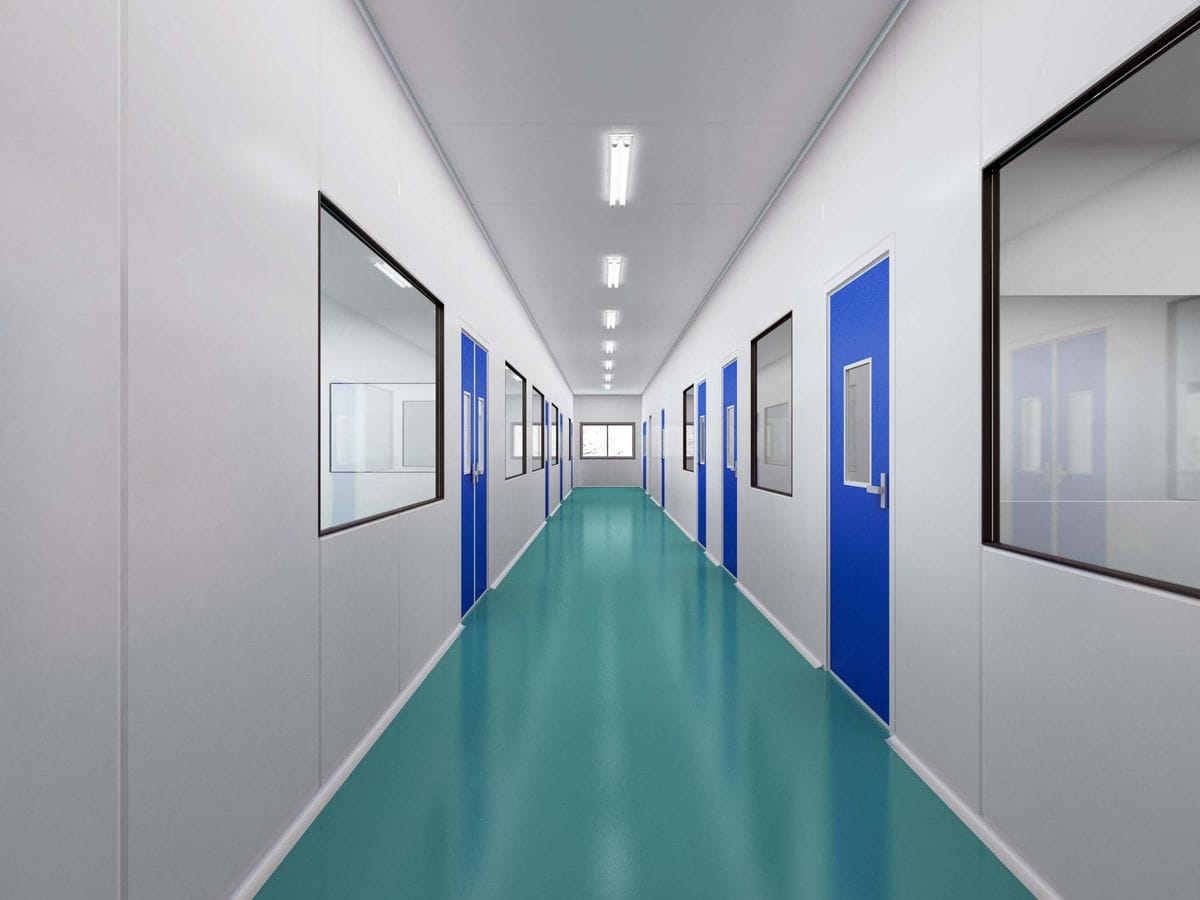

Cleanroom Partitions - Image 1

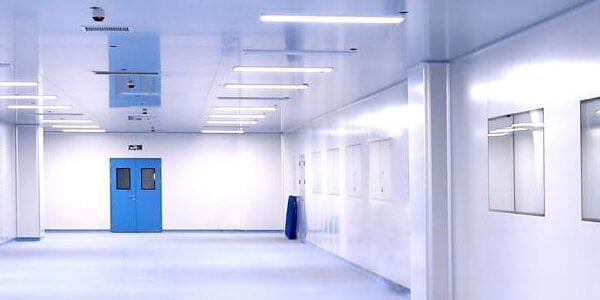

Cleanroom Partitions - Image 2

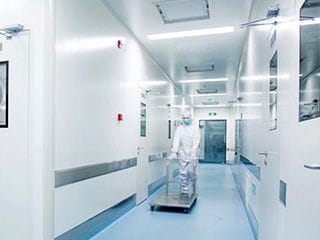

Cleanroom Partitions - Image 3

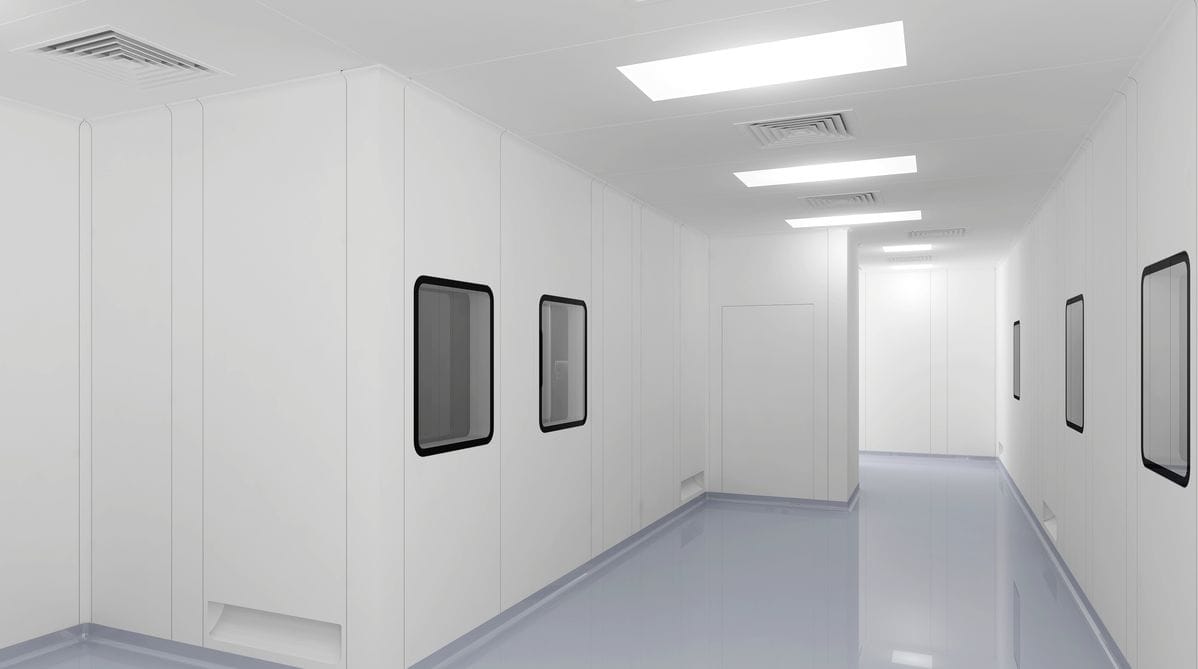

Cleanroom Partitions - Image 4

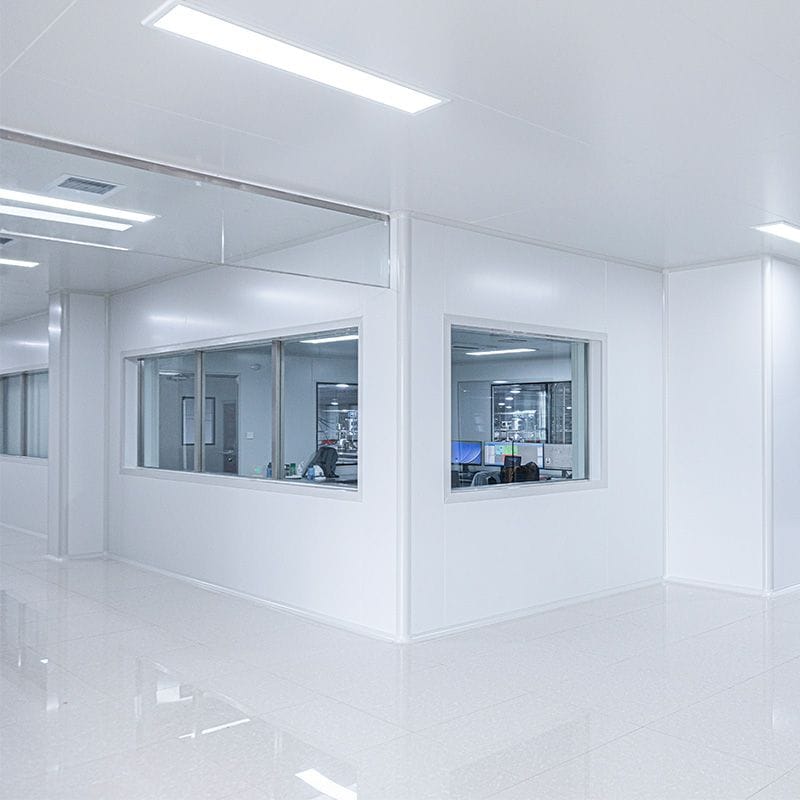

Cleanroom Partitions - Image 5

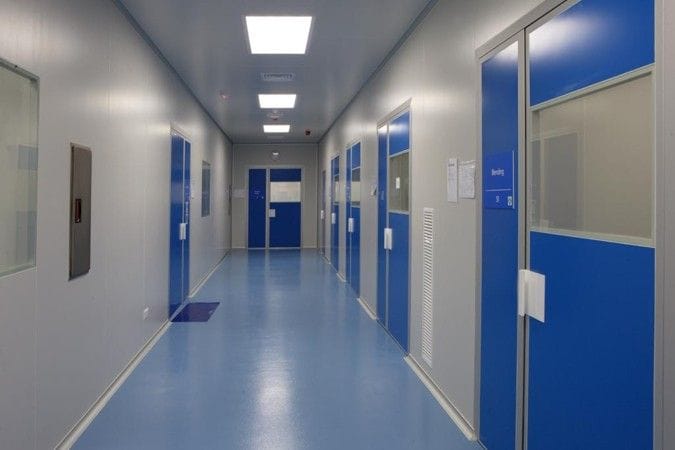

Cleanroom Partitions - Image 6

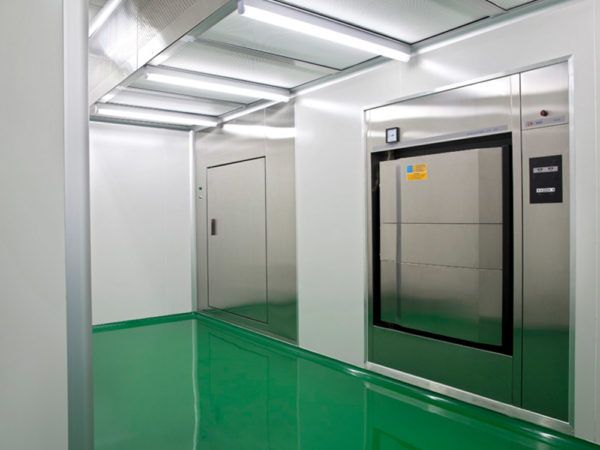

Cleanroom Partitions - Image 7

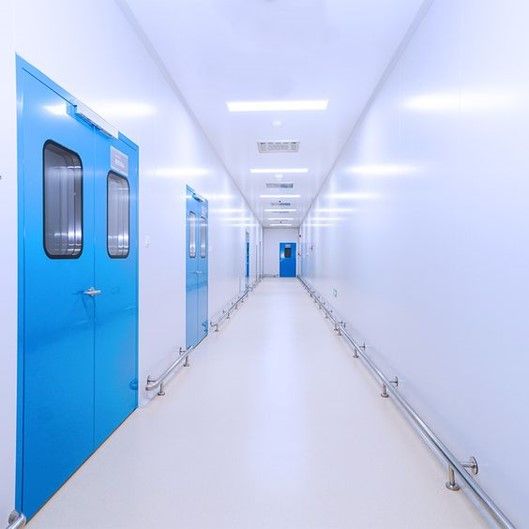

Cleanroom Partitions - Image 8

Why Choose PHOENIXX Cleanroom Partitions?

Industry-leading quality backed by engineering excellence and customer trust.

💰

Faster Project Completion

Modular construction reduces build time by 40-50% vs conventional walls.

⚡

Easy Validation

Consistent factory-made components simplify IQ/OQ documentation.

🛡️

Relocatable

Partitions can be dismantled and reinstalled for facility changes.

✅

Lower Lifecycle Cost

No painting, no cracks, no maintenance for 20+ years.

Key Features & Specifications

🧩

Modular Design

Pre-engineered modules for fast installation and easy modification.

✨

Flush Surfaces

Smooth, crevice-free surfaces minimize particle accumulation.

📐

Future Expansion

Easy to relocate or expand without major construction.

✅

GMP Compliant

Meets pharmaceutical and food industry standards.

Technical Specifications

CategoryParameterSpecification
Panel SpecificationsTypeSandwich/Hollow core
Thickness50/75/100 mm
HeightUp to 6000 mm
JointCam lock/H-profile
Finish OptionsSurfaceHPL/Steel/Glass
CoatingPVDF/PE/PVC
CornerCoved/Square
SkirtingIntegrated/Separate

Applications & Industries

Where are Cleanroom Partitions used? Discover the diverse applications across industries.

1Pharmaceutical Manufacturing

GMP-compliant walls for drug production facilities.

2Biotechnology

Containment walls for biotech research and production.

3Electronics

ESD-safe partitions for semiconductor manufacturing.

4Food Processing

Hygienic walls for food and beverage production.

5Healthcare

Hospital cleanrooms and isolation areas.

Explore More

Frequently Asked Questions

Everything you need to know about Cleanroom Partitions

What cleanroom classes are partitions suitable for?+
PHOENIXX cleanroom partitions are suitable for ISO Class 5 to Class 8 cleanrooms. Panel type, joints, and finishes are selected based on cleanliness requirements.
What panel types are available?+
Sandwich panels (PUF/PIR/Rockwool core), hollow-core panels for utilities, and solid steel panels. Each has specific applications based on thermal, acoustic, and fire requirements.
How are partition joints sealed?+
Cam-lock systems with gaskets for standard applications, flush H-profiles for aesthetic finish, and silicone-sealed joints for higher cleanliness levels.
Can utilities be integrated into partitions?+
Yes, hollow-core panels can house electrical conduits, data cables, and small utilities. Larger utilities require dedicated service panels or corridors.
What corner treatments are available?+
Coved corners (R50/R75) eliminate particle traps and are GMP-recommended. Square corners with cover strips are economical options for lower-class cleanrooms.
Are partitions fire-rated?+
Yes, partitions with Rockwool core achieve up to 2-hour fire rating. PIR panels provide B-s1,d0 rating. Fire ratings are tested as per IS 3614.
Can glass panels be incorporated?+
Yes, single and double-glazed vision panels are available. Full-height glass walls possible with aluminum framing. Fire-rated glazing also available.
What is the installation process?+
Floor/ceiling tracks installed first, then panels erected and locked. Windows, doors integrated next, followed by sealing and finishing. Typical rate: 50-80 sqm per day.
Can existing cleanrooms be modified?+
Yes, modular partitions can be relocated, extended, or reconfigured. This flexibility is a key advantage over conventional construction.
What documentation is provided?+
Material certificates, test reports, installation records, and IQ/OQ protocols. As-built drawings and maintenance manuals included.
How are partitions cleaned?+
Regular cleaning with approved cleanroom wipes and disinfectants. Surfaces resistant to common cleaning agents including hydrogen peroxide and IPA.
What warranty is provided?+
PHOENIXX provides 10-year warranty on partition structure and 5-year on surface finishes against peeling, fading, and delamination.
Can partitions be used in wet areas?+
Yes, with appropriate facing materials (SS 316, PVC-coated) and sealed joints, partitions are suitable for wash-down areas.
What is the cost comparison with brick walls?+
Initial cost is higher but total project cost is often lower due to faster installation. Lifecycle cost is significantly lower due to zero maintenance.
Are partitions earthquake-resistant?+
Yes, properly designed partition systems meet seismic requirements. Flexible connections allow movement without damage.

How to specify Cleanroom Partitions without overbuying

Most specification mistakes happen early: wrong thickness for the temperature delta, the wrong fire class for occupancy, or a coastal coating grade used inland. Use the guidance below as an engineering checklist before you freeze the BOQ.

What to lock before you order

  • • Match thickness to duty: partitions 30–50mm, controlled spaces 50–80mm, cold storage 80–150mm
  • • Choose skin for hygiene risk: PPGI for standard industrial; SS 304/316 where washdown or food contact applies
  • • Pick coating by exposure: PE inland, SMP for durability, PVDF for coastal or chemical atmospheres
  • • Confirm fire class against occupancy/insurance: PUF (B2/B3), PIR (B-s1,d0), Rockwool (A1/A2)
  • • Ask for thermal conductivity test data and IS 14925 compliance documents with the quote

Keep panels performing after handover

  • • Walk joint lines and flashings every monsoon season — sealant failure is the usual leak path
  • • Wash skins with mild detergent; abrasive cleaners cut coating life
  • • Re-check fastener torque and washers every two years on exposed roofing
  • • Watch for condensation on the inner skin in humid plants — often a vapour-detail issue, not foam failure
  • • After cyclones or extreme wind events, inspect edge flashings before the next rain cycle

Need a thickness or fire-class recommendation for your site? Request an engineering consultation or read the technical glossary.
