Sandwich Panels — Insulated Panels for Energy-Efficient, Fire-Safe & Durable Infrastructure
PHOENIXX designs and manufactures PUF, PIR, Rockwool, Roofing, Wall & Ceiling, Cold Storage, and Marine Sandwich Panels. Our panels are engineered for cold storage, cleanrooms, prefab buildings, industrial sheds, warehouses, and commercial projects across India.
150+
Projects Delivered
100+
Happy Clients
24+
Product Variants
20+
Industries Served
18+
Years Experience
30%
Energy Savings
Why Choose PHOENIXX Sandwich Panels?
Energy Efficiency
Thermal conductivity as low as 0.022 W/mK delivers up to 30% energy savings on cooling and heating costs.
Durability & Long Life
Weather-resistant, corrosion-proof panels with 25+ years service life in demanding environments.
Quick Installation
Lightweight interlocking system reduces construction time by 40-50% vs conventional methods.
Cost Effectiveness
High ROI with low maintenance costs and reduced operational expenses over the panel lifecycle.
Eco-Friendly
CFC-free insulation, recyclable materials, and energy efficiency support sustainability goals.
Explore Our Complete Sandwich Panel Range
PIR Sandwich Panel
Premium fire-resistant panels with Class B-s1,d0 rating for high-safety applications.
PIR panels, polyisocyanurate panels, fire rated insulated panels

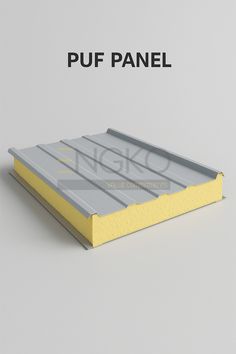

View Details →Sandwich PUF Panel
Cost-effective polyurethane foam panels for industrial and commercial insulation.
Sandwich PUF panels, PUF sandwich panel, polyurethane panels

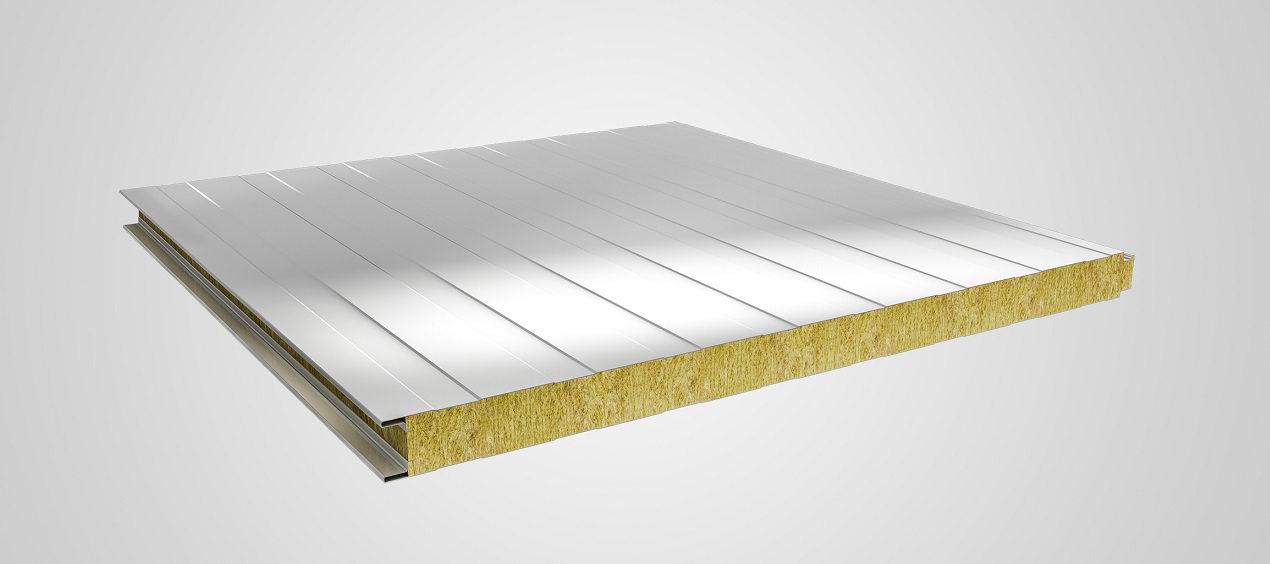

View Details →Rockwool Panel
Non-combustible mineral wool panels for fire-critical and acoustic applications.
Rockwool panels, mineral wool panels, fire resistant panels
View Details →

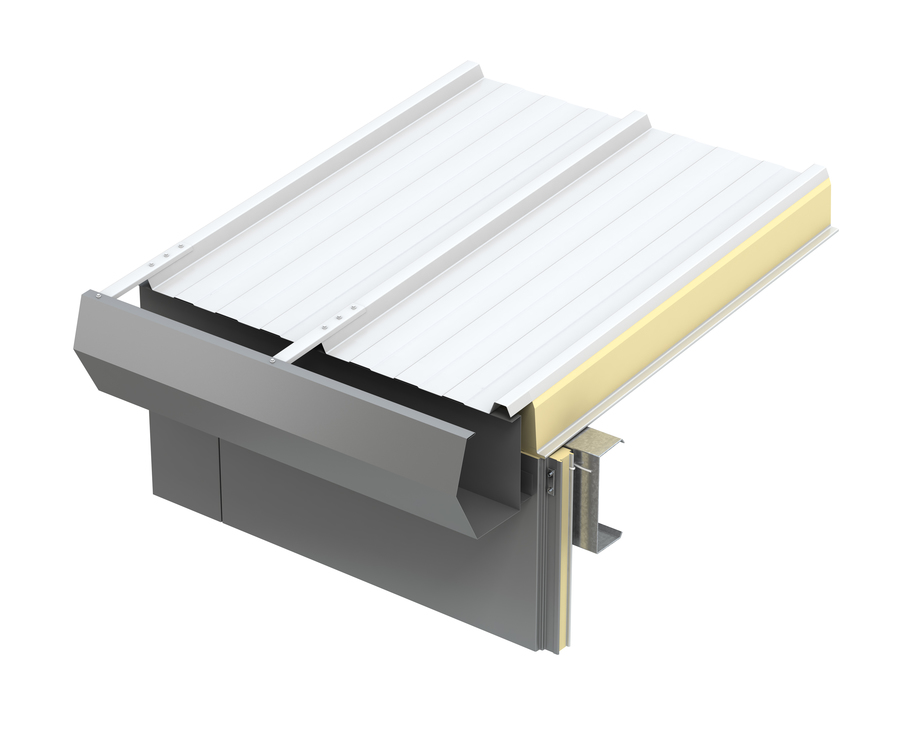

Roofing PUF Panel
Profiled insulated roofing panels optimized for weather resistance and drainage.
Roofing PUF panels, insulated roofing, roof sandwich panels
View Details →

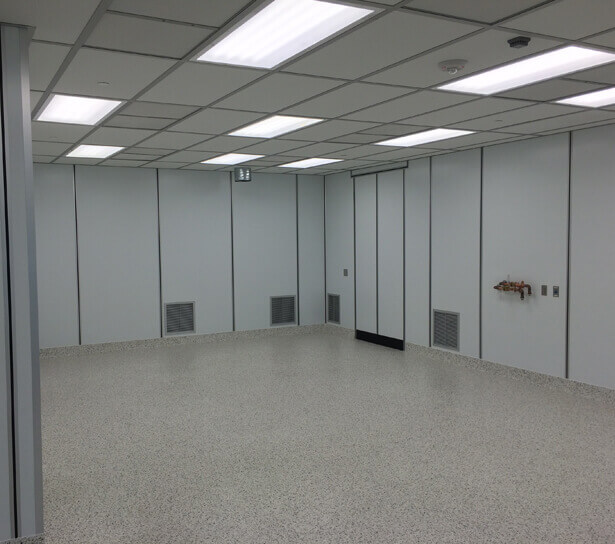

Wall & Ceiling Panel
Smooth-finish panels for interior walls and ceilings in GMP environments.
Wall panels, ceiling panels, cleanroom panels, GMP panels
View Details →
Cold Storage Panel
High-density insulated panels for cold rooms, freezers, and temperature-controlled storage.
Cold storage panels, cold room panels, freezer panels
View Details →
Marine PUF Panel
Corrosion-resistant panels for marine and coastal applications.
Marine PUF panels, coastal panels, corrosion resistant panels
View Details →Advanced Features of PHOENIXX Sandwich Panels
Our sandwich panels feature a three-layer construction: outer metal sheet + insulating core + inner metal sheet — engineered for optimal performance.
Thermal Insulation
K value 0.022 W/mK ±0.002 for superior energy efficiency
Fire Resistance
DIN 4102 B3 standard, B2 with PIR core option
Sound Insulation
Acoustic rating up to Rw 30-45 dB
Load-Bearing Strength
High structural integrity for industrial applications
Customization
Custom thickness (30-200mm), coatings, and RAL colors
Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Thickness (Wall/Ceiling) | 30–150 mm |
| Panel Thickness (Roofing) | 10–150 mm |
| Core Material | PUF / PIR / Rockwool |
| Outer Skin Options | PPGI, PPGL, SS304, Aluminum |
| Thermal Conductivity | 0.022 W/mK ± 0.002 |
| Strength (Tensile/Compression/Shear) | 150 kPa / 100 kPa / 100 kPa |
| Fire Rating | B3 (B2/PIR optional) |
| Panel Width | 1000 / 1150 mm |
| Panel Length | Standard 8–20 ft, Custom 3–15 m |
| Available Colors | Off-white, Sky Blue, Mist Green, Royal Blue, Brick Red, Grey |
Where Sandwich Panels Are Used
Can sandwich panels be used in commercial buildings?
Yes. Sandwich panels are ideal for commercial buildings including offices, showrooms, malls, and retail spaces. They provide excellent thermal insulation, quick installation, and aesthetic finishes.
Are they suitable for industrial sheds and warehouses?
Absolutely. Our roofing and wall panels are widely used in industrial sheds, factories, and warehouses. They offer weather resistance, thermal efficiency, and large-span capabilities.
Are they ideal for cold storage and freezers?
Yes. High-density PUF and PIR panels with 80-150mm thickness are specifically designed for cold storage (-40°C to +15°C), maintaining temperature integrity and reducing energy costs.
Can sandwich panels be used in prefab housing?
Yes. Lightweight sandwich panels are perfect for prefab houses, site offices, and modular buildings. They enable rapid construction with excellent insulation and structural stability.
Are walkable and non-walkable ceiling panels available?
Yes. We offer both walkable ceiling panels (load capacity up to 200 kg/m²) for maintenance access and non-walkable panels for standard ceiling applications in cleanrooms and industrial facilities.
Trusted by Leading Companies Across India
“PHOENIXX sandwich panels reduced our cold storage energy bills by 28%. The installation was fast, and the quality is exceptional. Highly recommended for any temperature-controlled facility.”
Industries We Serve
Frequently Asked Questions About Sandwich Panels
📌General Questions
What are sandwich PUF panels?
What is the difference between PUF and PIR panels?
What is the lifespan of sandwich panels?
⚙️Technical Questions
What is the thermal conductivity of PUF panels?
Are sandwich panels fire resistant?
What panel thickness is recommended for cold storage?
Can panels withstand heavy loads?
🏭Application Questions
Which sandwich panel is best for cold storage?
Can sandwich panels be used for residential housing?
Are these panels suitable for cleanrooms?
Can panels be used in coastal/marine environments?
🛒Buying & Delivery
What is the price of sandwich PUF panels?
What is the lead time for delivery?
What warranty do you provide?
Do you provide installation services?
Can I get samples before ordering?
Do you supply to other states outside Gujarat?
Ready to Get Started?
Contact our team for technical consultation, custom specifications, or a competitive quotation for your sandwich panel requirements.
