Wall & Ceiling Panels
PHOENIXX Wall & Ceiling Panels offer versatile solutions for both interior and exterior applications. Ideal for industrial false ceilings, partition walls, and exterior cladding, these panels combine aesthetic appeal with excellent thermal and acoustic insulation properties. The smooth, hygienic surfaces make them perfect for food processing and pharmaceutical environments.
Product Gallery
Why Choose PHOENIXX Wall & Ceiling Panels?
Industry-leading quality backed by engineering excellence and customer trust.
Hygienic Surfaces
Non-porous, washable surfaces ideal for food and pharma applications.
Bright Interiors
White/off-white finishes improve lighting and reduce energy costs.
Quick Installation
Modular panels install in hours, not days like conventional systems.
Space Saving
Thin profiles (25-50mm) maximize usable floor and ceiling space.
Key Features & Specifications
Dual Application
Suitable for both wall cladding and ceiling installations in single product.
Aesthetic Finish
Smooth, flat surfaces with multiple color options for modern interiors.
Acoustic Insulation
Excellent sound absorption for noise-sensitive environments.
Easy Maintenance
Smooth surfaces enable easy cleaning and long-term maintenance.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Core Properties | Core Material | Polyurethane Foam (PUF) |
| Density | 38-42 kg/m³ | |
| Thermal Conductivity | 0.024 W/mK | |
| Fire Class | B2 (Self-extinguishing) | |
| Panel Dimensions | Thickness | 25, 30, 40, 50 mm |
| Width | 1000/1200 mm | |
| Length | Up to 6,000 mm | |
| Weight | 6-12 kg/m² | |
| Facing Options | Steel Thickness | 0.35-0.50 mm |
| Coating | PE/PVDF/PVC Film | |
| Colors | White/Off-white/Custom RAL | |
| Surface | Flat smooth finish |
Applications & Industries
Where are Wall & Ceiling Panels used? Discover the diverse applications across industries.

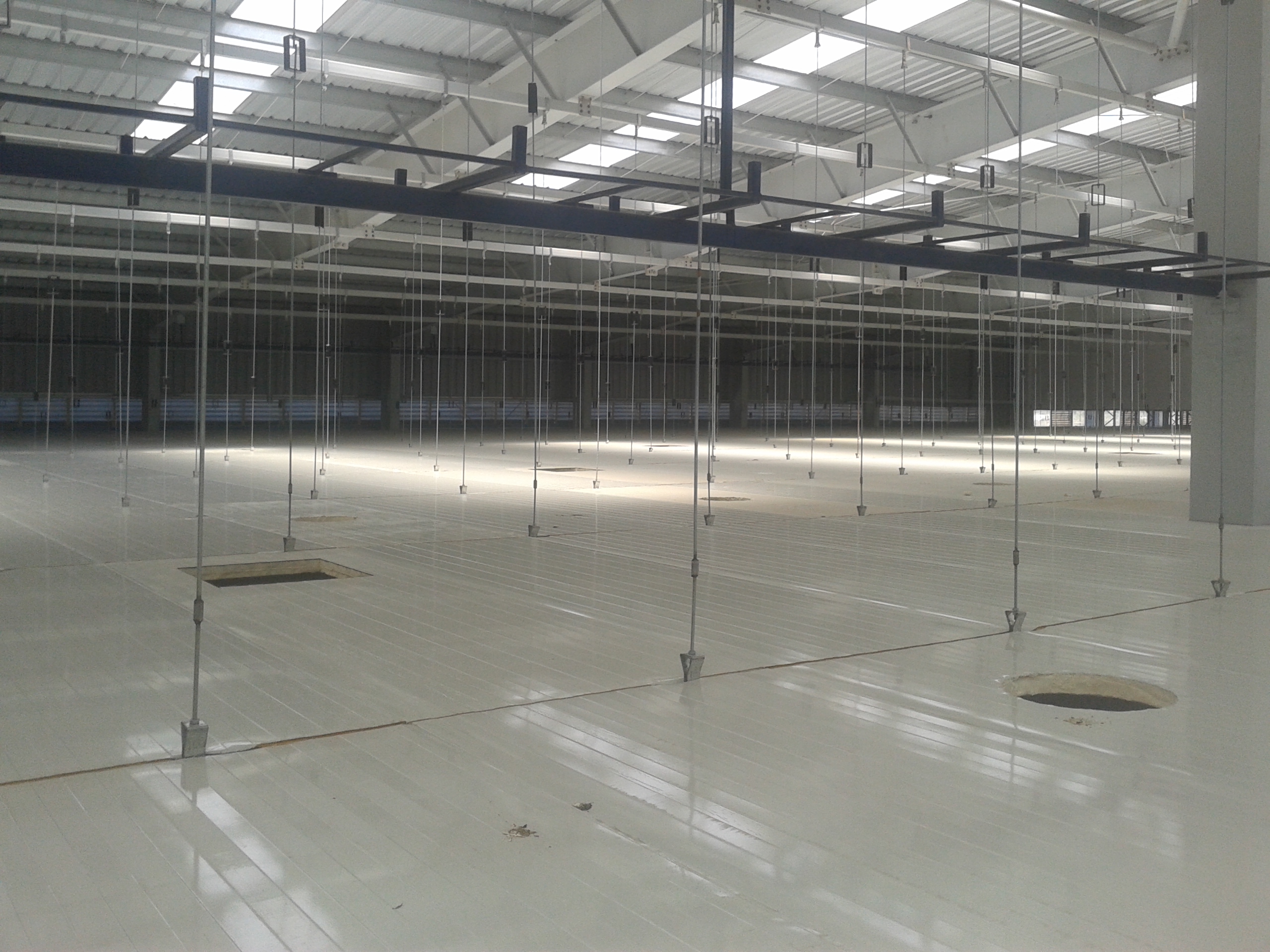

1Industrial False Ceilings
Insulated ceiling systems for factories and warehouses.

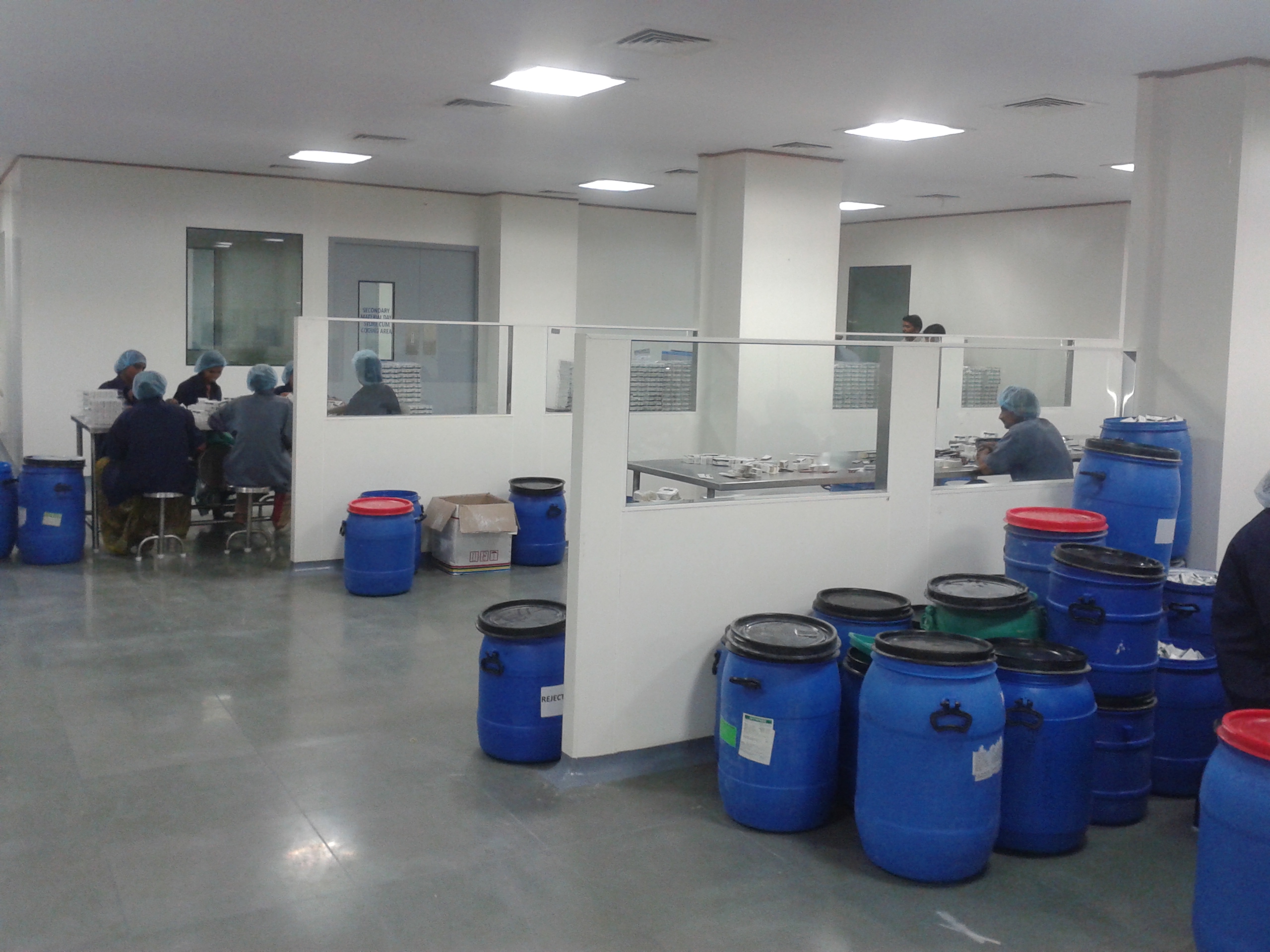

2Clean Room Partitions
Hygienic wall systems for controlled environments.

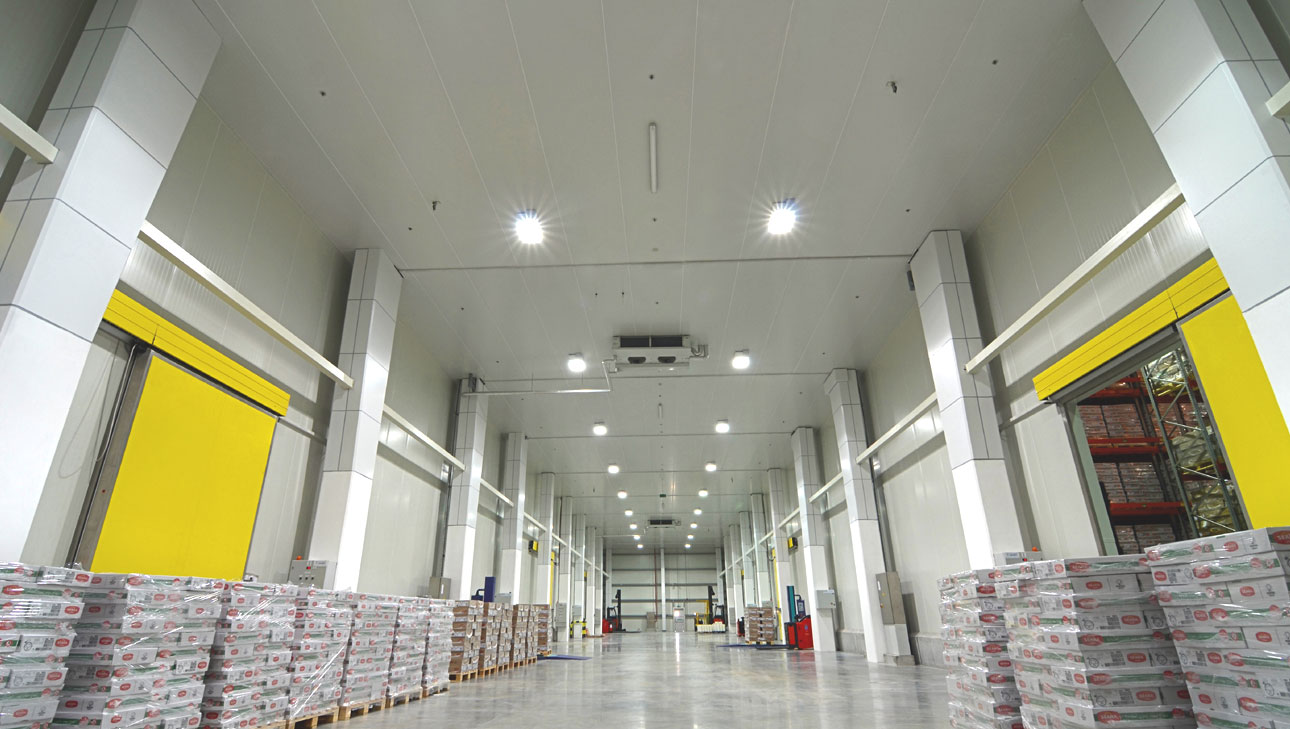

3Cold Storage Interiors
Interior lining for cold rooms and freezers.
4Commercial Interiors
Modern aesthetics for offices and retail spaces.
5Food Processing Units
HACCP-compliant surfaces for food manufacturing.
Explore More
📦 Related Products
🏗️ Related Solutions
🏭 Industries Served
Frequently Asked Questions
Everything you need to know about Wall & Ceiling Panels
What is the difference between wall and ceiling PUF panels?+
Can these panels be used in food processing areas?+
What ceiling height can be achieved?+
Are these panels suitable for humid environments?+
How are ceiling panels installed?+
Can lights be integrated into ceiling panels?+
What is the acoustic performance?+
Are panels fire resistant?+
Can panels be painted?+
What maintenance is required?+
Can panels be removed and reinstalled?+
What is the cost comparison with gypsum ceilings?+
Are panels suitable for cleanrooms?+
What warranty is provided?+
Can panels span long distances without support?+
How to specify Wall & Ceiling Panels without overbuying
Most specification mistakes happen early: wrong thickness for the temperature delta, the wrong fire class for occupancy, or a coastal coating grade used inland. Use the guidance below as an engineering checklist before you freeze the BOQ.
What to lock before you order
- • Match thickness to duty: partitions 30–50mm, controlled spaces 50–80mm, cold storage 80–150mm
- • Choose skin for hygiene risk: PPGI for standard industrial; SS 304/316 where washdown or food contact applies
- • Pick coating by exposure: PE inland, SMP for durability, PVDF for coastal or chemical atmospheres
- • Confirm fire class against occupancy/insurance: PUF (B2/B3), PIR (B-s1,d0), Rockwool (A1/A2)
- • Ask for thermal conductivity test data and IS 14925 compliance documents with the quote
Keep panels performing after handover
- • Walk joint lines and flashings every monsoon season — sealant failure is the usual leak path
- • Wash skins with mild detergent; abrasive cleaners cut coating life
- • Re-check fastener torque and washers every two years on exposed roofing
- • Watch for condensation on the inner skin in humid plants — often a vapour-detail issue, not foam failure
- • After cyclones or extreme wind events, inspect edge flashings before the next rain cycle
Need a thickness or fire-class recommendation for your site? Request an engineering consultation or read the technical glossary.
