Seamless Design. Superior Strength. Smarter Roofing by PHOENIXX.

PUF Sandwich Roof Panels

A PUF sandwich roof panel is an insulated roofing system made by injecting rigid Polyurethane Foam (PUF) between two pre-painted metal sheets. This creates a strong composite panel that combines lightweight construction with superior insulation and load-bearing capacity. PUF roof panels are widely used where temperature control, energy efficiency, and long service life are critical. Unlike conventional roofing sheets, PHOENIXX panels are engineered to achieve a load-bearing capacity far greater than the combined strength of individual layers. This allows panels to safely bridge wide spans while remaining lightweight. PHOENIXX PUF sandwich roof panels are specially designed to perform reliably in Indian weather conditions, including high ambient temperatures, heavy rainfall and humidity, strong winds (up to 120 km/h), industrial pollution and UV exposure. This makes them ideal for projects across all regions of India.

500+
Projects Delivered
12+
Years Experience
98%
Client Satisfaction
Pan India
Delivery Network
Request Quote →📞 Call Now

Product Gallery

PUF Sandwich Roof Panels - Image 1

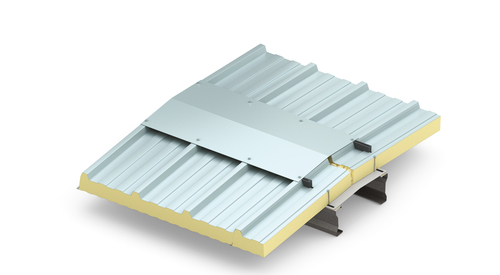

PUF Sandwich Roof Panels - Image 2

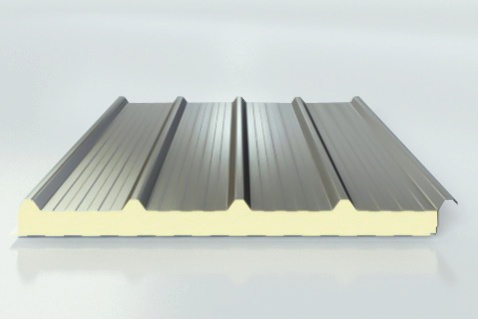

PUF Sandwich Roof Panels - Image 3

Why Choose PHOENIXX PUF Sandwich Roof Panels?

Industry-leading quality backed by engineering excellence and customer trust.

💰

Significant Energy Savings

Low thermal conductivity minimizes heat gain, reducing electricity consumption and operating costs over time.

⚡

Reduced Structural Steel

Longer spans mean fewer purlins and reduced structural steel weight, lowering overall project costs.

🛡️

Year-Round Indoor Comfort

Consistent indoor temperature maintained regardless of external weather conditions.

✅

Low Maintenance

Long service life of 25-30 years with proper installation. No painting or regular repairs required.

✅

Custom Manufacturing

Panels manufactured to exact sizes up to 20 meters length with custom thickness, color, and coatings.

✅

Pan-India Delivery

Faster delivery timelines with dedicated technical and after-sales support across India.

Key Features & Specifications

🌡️

Excellent Thermal Insulation

Low thermal conductivity (0.024-0.030 W/mK) reduces heat transfer, minimizing dependency on air-conditioning and cooling systems.

💪

Lightweight Yet Strong

Engineered to achieve load-bearing capacity far greater than combined strength of individual layers while remaining lightweight.

⚡

40-60% Faster Installation

Large effective cover width, interlocking design, and no secondary insulation needed enables rapid installation.

🌦️

Weather Resistant

Designed for Indian conditions - withstands high temperatures, heavy rainfall, humidity, winds up to 120 km/h, and UV exposure.

🔥

Fire-Retardant Options

Available in B1, B2, B3, and PIR foam types for enhanced fire safety compliance.

🌱

CFC & HFC Free

Environmentally friendly manufacturing - supports green building initiatives and reduces carbon footprint.

Technical Specifications

CategoryParameterSpecification
Panel DimensionsAvailable Thickness30mm | 40mm | 50mm | 80mm | 100mm | 120mm
Total Width1070 mm
Effective Cover Width1000 mm
Panel Length1000 mm – 20,000 mm (custom)
Core PropertiesPUF Density40 ± 2 kg/m³
Thermal Conductivity0.024 – 0.030 W/mK
Operating Temp Range-40°C to +80°C
Foam Types AvailableB1 | B2 | B3 | PIR
PerformanceWind ResistanceUp to 120 km/h
Paint CoatingsSMP | SDP | PVDF (Internal & External)
Environment FriendlyCFC & HFC Free
Minimum Roof Slope5-7 degrees recommended

Applications & Industries

Where are PUF Sandwich Roof Panels used? Discover the diverse applications across industries.

1Industrial Sheds & Manufacturing Plants

Temperature-controlled manufacturing environments with consistent indoor comfort.

2Warehouses & Logistics Parks

Large-span roofing for storage facilities with energy-efficient climate control.

3Cold Storage & Food Processing Units

Excellent thermal insulation ideal for refrigerated warehouses and food-grade environments.

4Pharmaceutical & Cleanroom Facilities

GMP-compliant roofing solutions for controlled environment manufacturing.

5Commercial Buildings

Energy-efficient roofing for offices, retail spaces, and showrooms.

6Prefabricated & Modular Structures

Fast-installation roofing for prefab buildings, site offices, and temporary structures.

Explore More

Frequently Asked Questions

Everything you need to know about PUF Sandwich Roof Panels

What is a PUF sandwich roof panel?+
A PUF sandwich roof panel is an insulated roofing system made by injecting rigid Polyurethane Foam (PUF) between two pre-painted metal sheets. This creates a strong composite panel that combines lightweight construction with superior insulation and load-bearing capacity.
What is the life span of a PUF sandwich roof panel?+
PHOENIXX PUF sandwich roof panels typically last 25-30 years or more with proper installation and maintenance. PVDF-coated panels can last even longer with superior UV resistance.
Are PUF roof panels suitable for cold storage buildings?+
Yes, PUF roof panels are ideal for cold storage due to their excellent thermal insulation properties. The low thermal conductivity (0.024-0.030 W/mK) maintains consistent temperatures and reduces energy consumption.
Do PUF roofing panels require additional insulation?+
No, PUF sandwich roof panels are pre-insulated roofing systems. The rigid polyurethane foam core provides built-in thermal insulation, eliminating the need for secondary insulation.
Are PHOENIXX panels customizable?+
Yes, PHOENIXX panels are fully customizable. Thickness (30-120mm), length (up to 20m), colors (RAL standard), and coatings (SMP/SDP/PVDF) can all be specified based on project requirements.
How do PUF panels compare with metal roofing sheets?+
PUF sandwich panels provide built-in insulation, better energy efficiency, noise reduction, and longer service life compared to plain metal roofing sheets. They also reduce HVAC costs significantly.
What is the difference between PUF and PIR roof panels?+
PUF panels offer excellent insulation at economical cost, ideal for warehouses and factories. PIR panels provide enhanced fire resistance and are recommended for pharma, cold storage, and high-compliance projects.
What factors affect PUF roof panel price?+
The cost depends on panel thickness, foam type (PUF or PIR), steel thickness, paint coating (SMP/SDP/PVDF), quantity, and project location. PHOENIXX offers competitive pricing with custom manufacturing flexibility.
How fast can PUF sandwich roof panels be installed?+
PUF sandwich roof panels can be installed 40-60% faster than traditional roofing systems due to large effective cover width (1000mm), interlocking panel design, and no requirement for secondary insulation.
What slope is required for PUF roofing?+
A minimum roof slope of 5-7 degrees is recommended for proper water drainage. Higher slopes improve drainage and reduce the risk of water ponding.
Can PUF roofing panels withstand Indian weather conditions?+
Yes, PHOENIXX panels are specifically designed for Indian conditions including high ambient temperatures, heavy rainfall, humidity, strong winds (up to 120 km/h), industrial pollution, and UV exposure.
Are PHOENIXX PUF panels environmentally friendly?+
Yes, PHOENIXX PUF roof panels are CFC & HFC free, energy-efficient, and designed to reduce carbon footprint. They support green building initiatives and sustainable construction practices.
Can solar panels be installed on PUF roofing?+
Yes, solar panels can be installed using non-penetrating mounting systems or with proper flashing and sealing for through-fixings. The structural strength of PUF panels supports solar installations.
What is the manufacturing process for PUF roof panels?+
Pre-treated steel/aluminum sheets are roll-formed into roofing profiles, rigid PUF is injected between sheets, foam expands and cures bonding permanently to metal skins, panels are cut to size, coatings applied, and quality checked before dispatch.
Why choose PHOENIXX over other PUF panel manufacturers?+
PHOENIXX offers engineering optimized for Indian conditions, faster delivery timelines, custom panel sizes up to 20 meters, competitive pricing, and dedicated technical and after-sales support.
